Product introduction
A CNC automatic welding machine is an automated device that uses a numerical control system to control the welding process. It is widely used for batch welding of metal workpieces such as steel structures, pressure vessels, pipelines, and storage tanks.
Product advantages
Precision Welding
The machine is controlled by a CNC system, which uses position feedback to correct the welding gun's trajectory in real time, keeping the welding gun's trajectory deviation within ±0.2 mm.
Rigid Frame
The machine bed is welded from 20–30 mm thick Q235 structural steel plates, which are annealed to eliminate stress and ensure long-term deformation resistance.
Intelligent Control

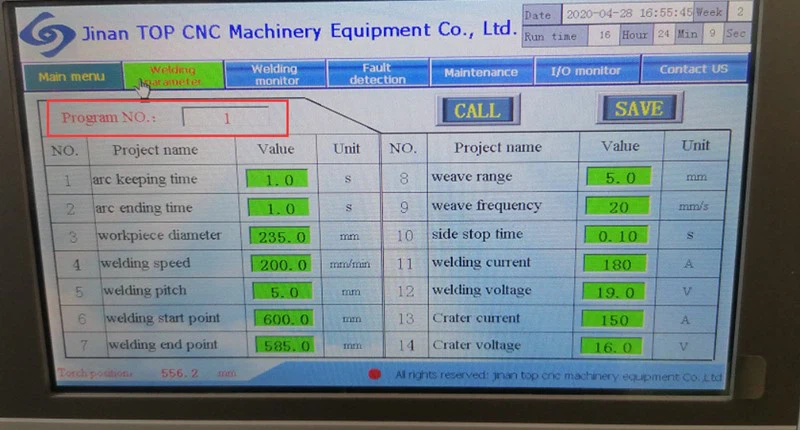

The machine has a built-in PLC control system that presets and stores welding parameters, automatically recalling them during welding to reduce manual intervention.
technical parameters
|
Shaft diameter |
100mm-250mm |
|
Shaft length |
200mm-1000mm |
|
Shaft weight |
Max 1ton |
|
Rotation speed |
0.2-2rpm |
|
Servo motor power |
0.75kw |
|
Air pressure |
0.4-0.6Mpa |
|
SAW diameter of welding wire |
3.0mm / 3.2mm |
|
Welding power source |
China AOTAI MZ-1000 |
|
Machine working voltage |
380v 3 phase 50hz |
|
Machine package dimension |
3220*1950*1900mm |
|
Package weight |
1800KG |
Packaging & Logistics
The equipment is wrapped with moisture-proof film and reinforced with wooden box packaging. It can be transported by air, sea, road, or railway to ensure the machine is delivered intact.
The Reason to Choose Us
Extensive Product Line
Our product line includes various welding equipment, scaffolding production equipment, conveyor roller machines, and mesh racks, meeting the diverse needs of various customers.
Quick Response
Customer inquiries are responded to within 24 hours, samples are provided within 2–3 days, and after-sales issues are addressed within 48 hours, ensuring prompt resolution of customer issues.
Quality Guarantee
Each machine undergoes over 100 hours of testing before leaving the factory to ensure stable performance. We also provide a 24-month warranty and lifetime maintenance and technical support.
FAQ
Q: What materials are suitable for welding CNC automatic welding machines?
A: It can weld common metals such as carbon steel, stainless steel, and aluminum alloys.
Q: Can the machine be used in low- and high-temperature workshops?
A: It can operate stably in environments ranging from -10°C to 45°C.
Q: What are the common consumables consumption figures?
A: Wire consumption is approximately 1.5–2.0 kg/hour, and the nozzle is recommended to be replaced every 150–200 hours.
Q: Is an operator's manual provided?
A: A detailed operation and maintenance manual is included with the equipment.
Q: Does the manufacturer provide spare parts?
A: We keep all commonly used spare parts in stock and are ready for shipment.
