PRODUCT DESCRIPTION
Machine Features

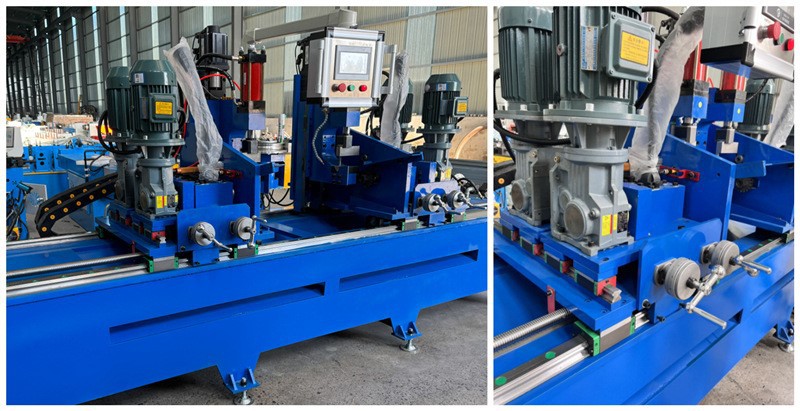

1. The machine is mainly used to flat shaft ends.
2. PLC is used to control whole milling process. Touch interface display.
3. Advanced servo system is used for positioning and milling. Machine will mill and flat four surfaces at the same time.
4. Applicable shaft length: 360mm - max 2600mm, shaft diameter: 20mm-50mm
5. The roller shaft flattening machine is with the application of grating ruler, the width and the length of the flat can be changed with the standard dimensions and also at the request of your customers.
6. The roller shaft flattening machine's working accuracy is ±0.05mm.
7
The machine has Automatic Loading, feeding and unloading, saving labor, with high efficiency.
Machine Technical Parameters
|
Model |
GY-M2600NC |
|
Positioning adjustment mode |
Manual adjustment |
|
Machine milling tool spindle center height |
750mm |
|
Milling spindle speed |
65-120 rpm |
|
Milling position |
According to the shaft diameter |
|
Hydraulic pressure |
0.4-0.6 |
|
Longitudinal feed speed |
Default 0.2-0.3 per revolution |
|
Shaft diameter |
20mm-50mm |
|
Servo motor |
2KW*2sets |
|
Spindle AC motor |
2.2KW*4sets |
|
Hydraulic system motor |
5.5KW*1set |
|
Machine dimension |
Machine: 3750×1430×1770mm Hydraulic station: 1130×560×780mm |
|
Machine working voltage |
380V 3phase 50hz |
