Introduction
Automatic Scaffolding Machine is a fully automated equipment designed for welding and processing scaffolding pipe fittings. It has high-precision control and stable output, and is suitable for large-scale scaffolding production.
PRODUCT DESCRIPTION

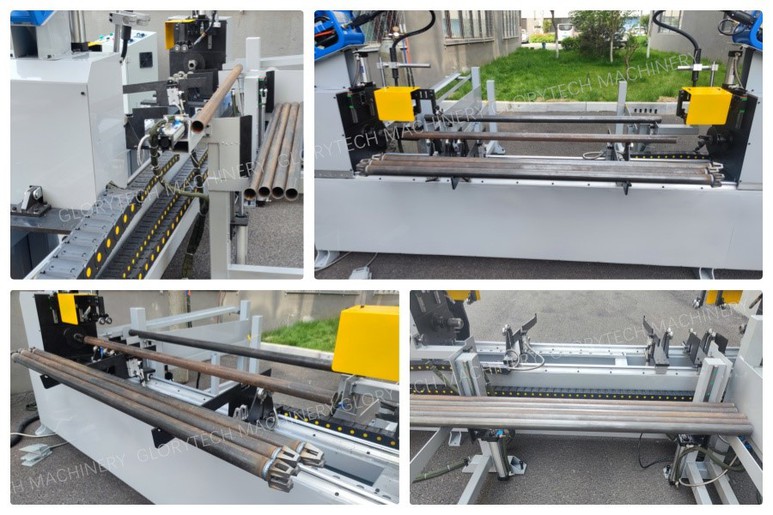

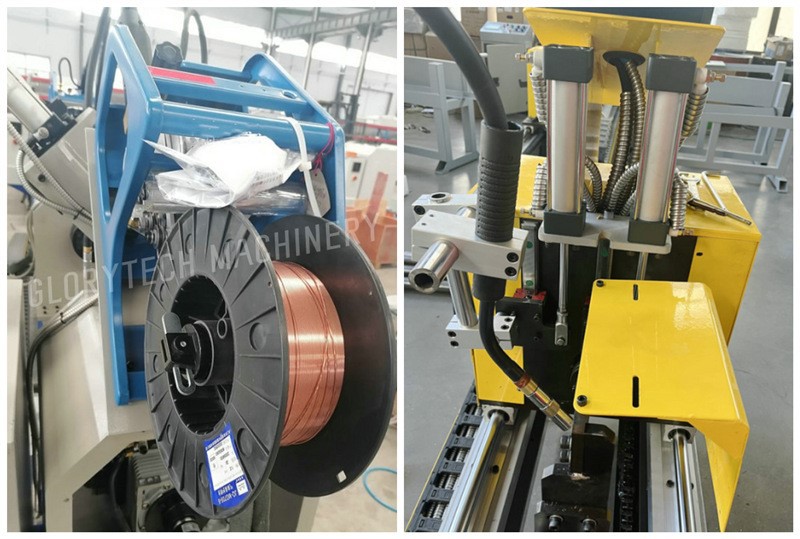

Machine Structure
1
Wide Adaptability
It is suitable for steel pipes with diameters ranging from 10mm to 100mm and lengths from 300mm to 3000mm, meeting the processing needs of various specifications for scaffolding main poles, crossbars, diagonal braces, and other parts.
2
Precise Control

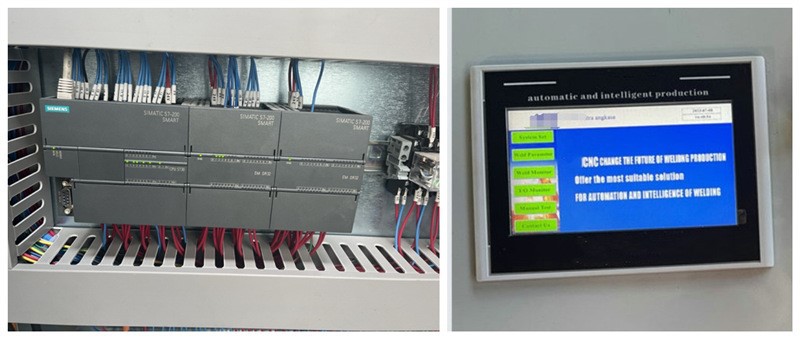

A Siemens PLC control system, coupled with an adjustable rotation speed from 1 to 10 rpm, enables precise control of the welding trajectory.
3
Energy-Efficient and Highly Efficient

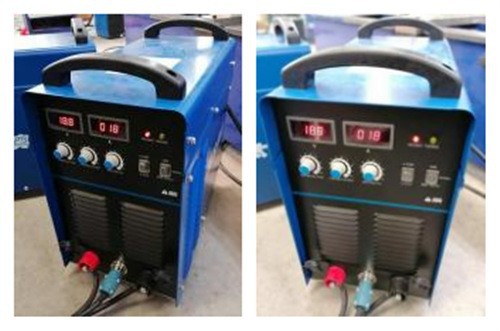

The main motor power is only 0.5kW. When combined with the NBC-350 welding power source, it provides a stable arc while effectively reducing energy consumption.
4
Stable Air Pressure
The operating air pressure is maintained within a range of 0.4–0.6MPA, ensuring uniform and stable clamping force, preventing pipe slippage and weld deviation.
Main Technical Parameters for Reference
|
Applicable pipe diameter |
10mm-100mm |
|
Applicable pipe length |
300mm-3000mm |
|
Rotation speed |
1-10rpm |
|
Motor power |
0.5kw |
|
Air pressure |
0.4-0.6MPA |
|
Control system |
Siemens PLC |
|
Machine working voltage |
220v 1 phase 50hz |
|
Welding power source |
NBC-350 (380v 3 phase) |
Applications
Mainly used for automated welding and processing of scaffolding components, including:
Main column welding: Ensures the strength and safety of load-bearing members.
Welding of crossbars and diagonal braces: Ensures structural stability and fast assembly.
Connector and joint processing: Standardized mass production ensures interchangeability of components.
Company Strengths
Founded in 2013, we have two large factories covering 60,000 square meters and over 300 employees.
With over 10 years of experience specializing in welding and metalworking automation, we serve industries such as pipelines, tanks, bridges, and automotive.
Our products are exported to over 45 countries (including Germany, the United States, Russia, and India).
Our equipment and management are ISO9001 and CE certified.
Each unit undergoes over 100 hours of rigorous testing before shipment to ensure stability and reliability.
We offer a 24-month warranty, lifetime maintenance, on-site and remote technical support, and spare parts supply.
PACKAGING & LOGISTICS
Safe Packaging & Logistic
CONTACT GLORYTECH
Contact Us
Location
Shunyi Road, High-tech District, Jinan, Shandong of China
FAQ
Q: Is this machine suitable for mass production?
A: Yes. The equipment operates continuously and stably, and PLC control ensures welding consistency. Each machine can replace 3–5 skilled welders.
Q: Does this equipment require a professional welder?
A: No. The machine is highly automated, allowing ordinary workers to operate it after 1–2 days of training, reducing manual labor.
Q: Are the power requirements for installation high?
A: No. The main power supply is 220V single-phase, suitable for use in ordinary workshops; the welding power supply is 380V three-phase industrial power, suitable for conventional factories.
Q: What specific scaffolding components can the machine process?
A: It can be used for welding and processing scaffolding main poles, crossbars, diagonal braces, connectors, and other components, covering the production of common construction scaffolding components.
Q: How is welding accuracy guaranteed?
A: The Siemens PLC control and adjustable speed system ensure uniform and stable welds, with a finished product pass rate exceeding 98%.
Q: Is maintenance complex?
A: Daily inspections of the fixture and air pressure system are only required. Key components are standardized and easy to replace, resulting in low maintenance costs.
